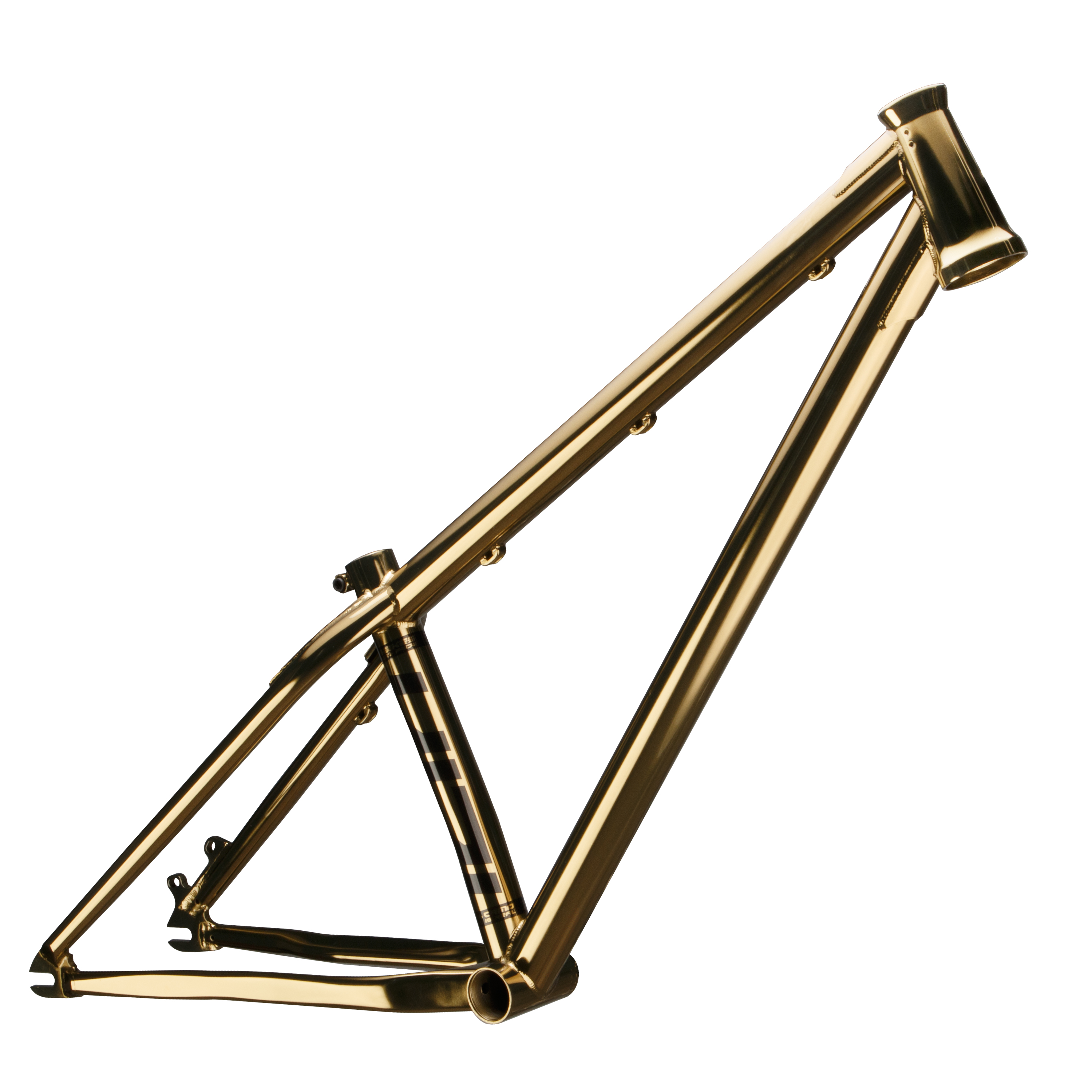

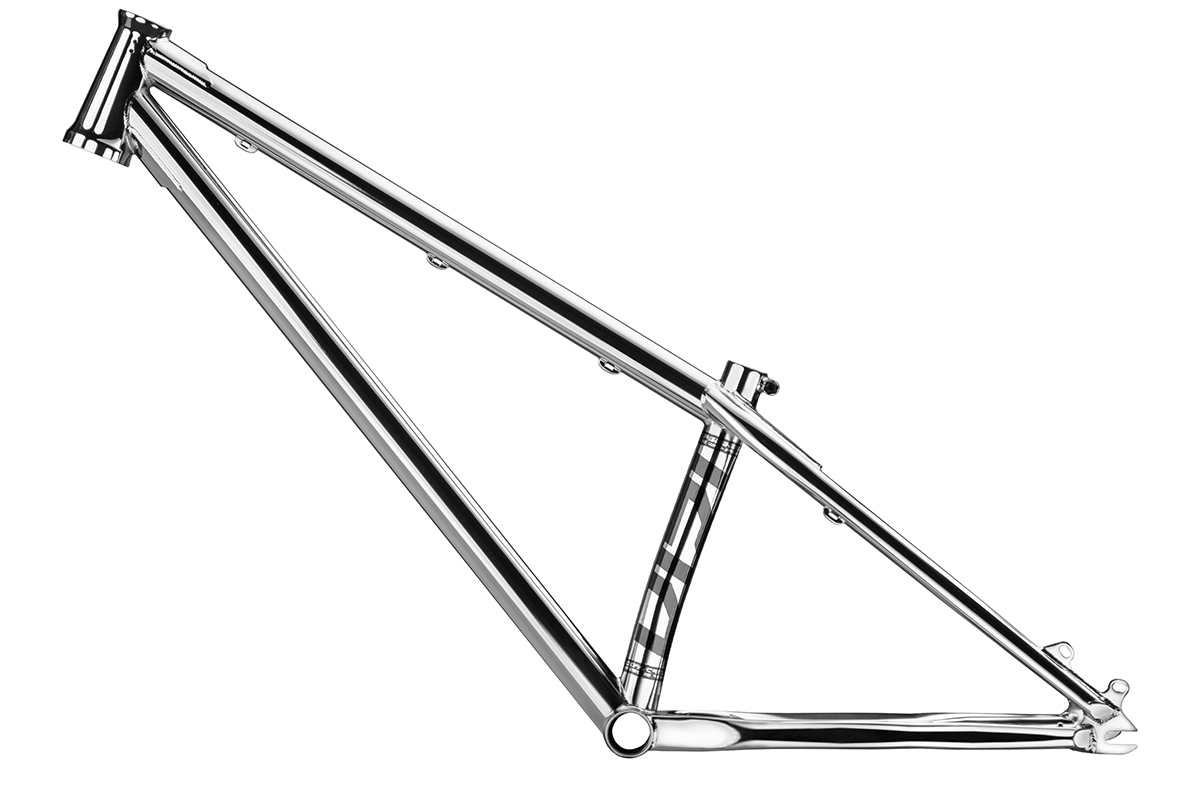

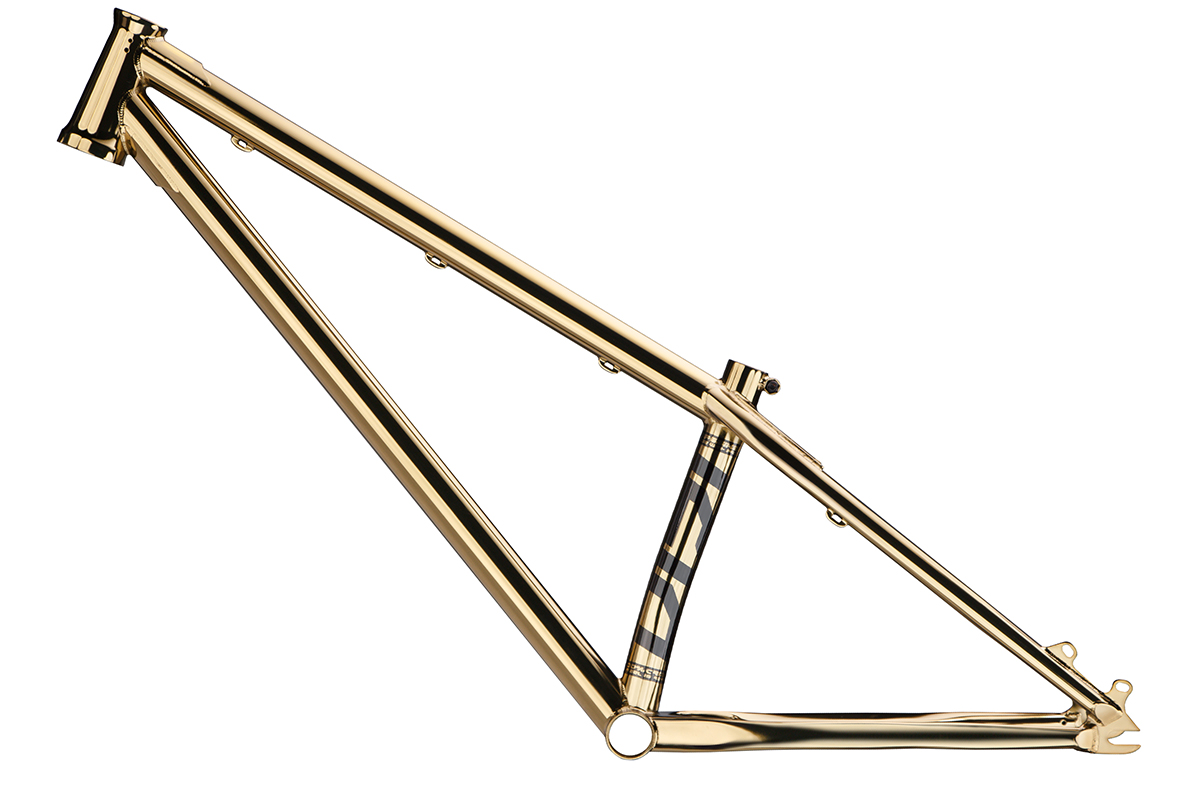

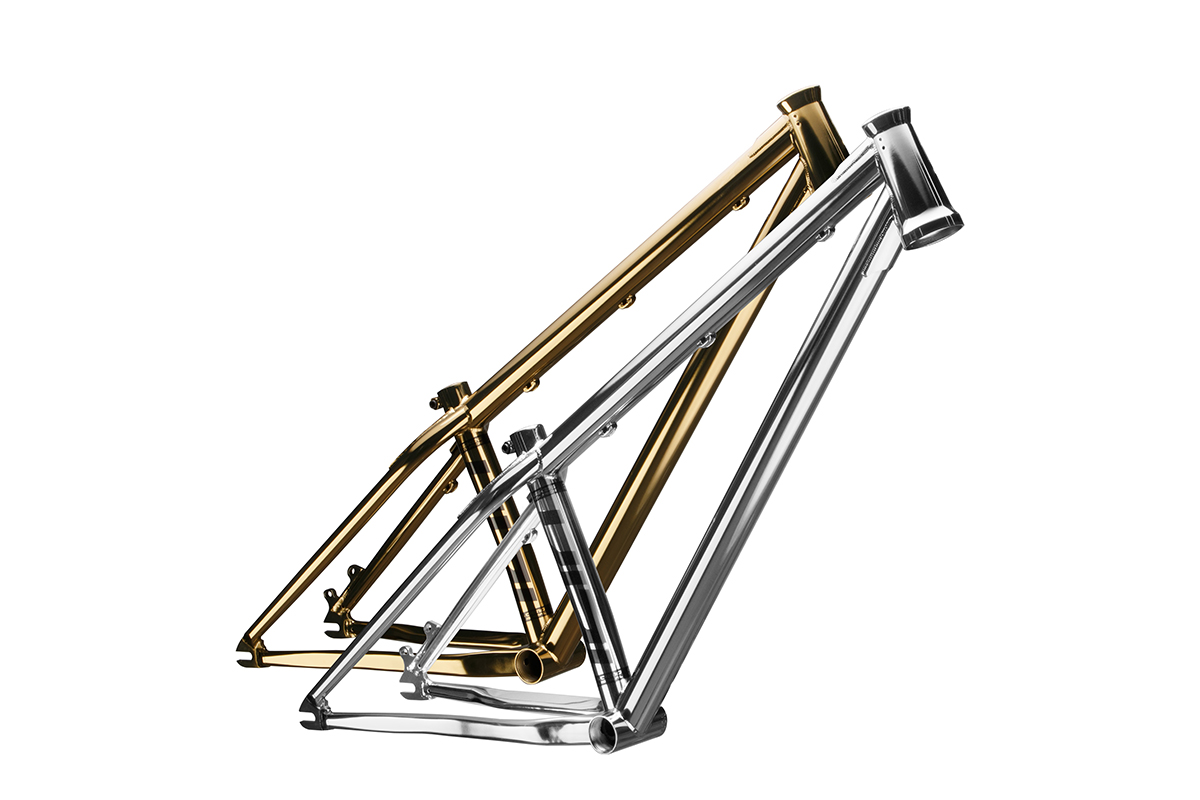

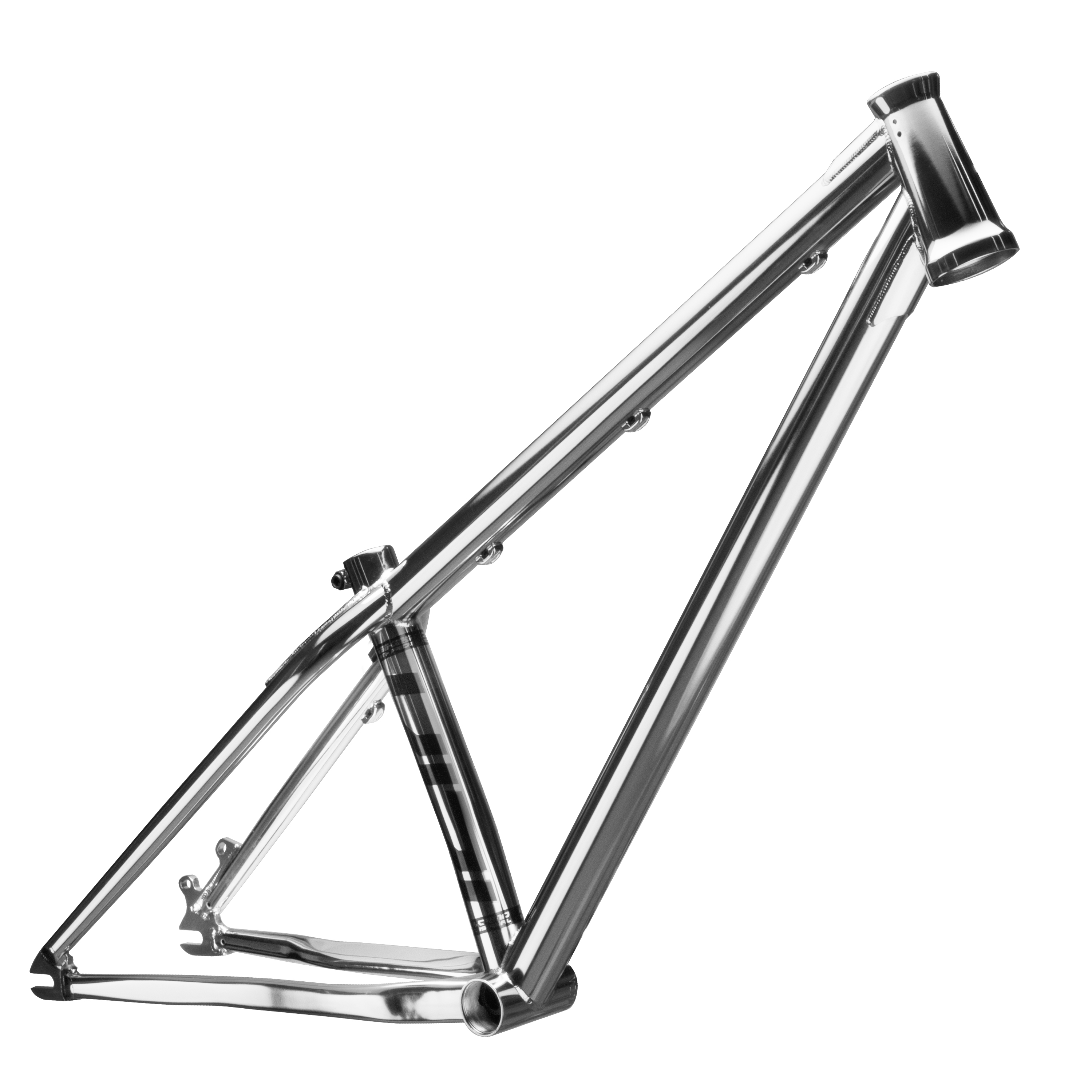

VIDI CR

PRODUDT INFO

STEEL IS REAL!

This is an irresistible frame, born from a decade of Cr-Mo frame design experience. The VIDI cr is a product we are confident ranks among the world's best in the steel frame category, just like the VICI v3.

VIDI cr incorporates a plethora of high-end processes - Hi-end Cr-Mo 4130 steel tubes, offset multiple butted of Top tube and down tube, heat treatment before welding, micro smooth dropouts, hydroformed chainstay. All these elements come together to create the VIDI cr, one of the strongest steel frames on the market.

The VIDI cr is a frame designed for dirt jump and pump track riders. Its lower bottom bracket drop provides more stability, while the relatively shorter front end and chainstay allow riders to effortlessly execute a variety of daring tricks.


Build Quality

Hand Made in Taiwan

Triple Butted top tube & Double Butted down tube

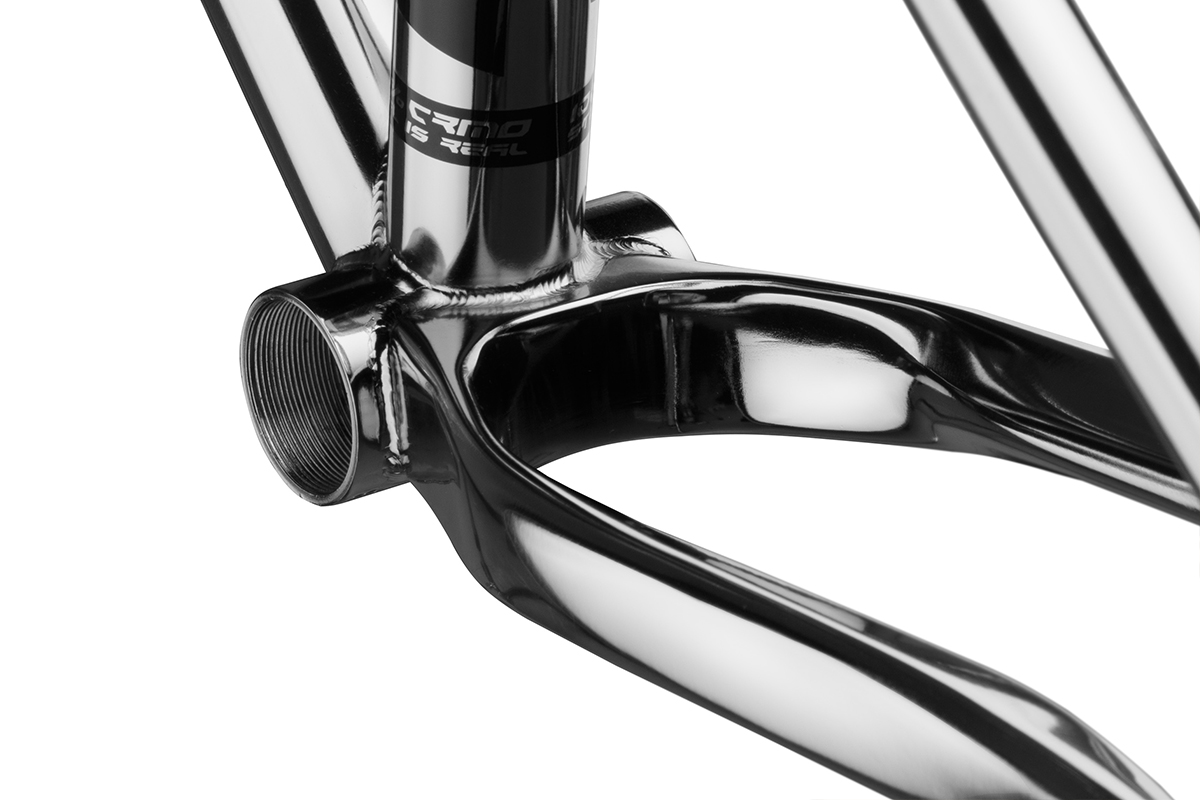

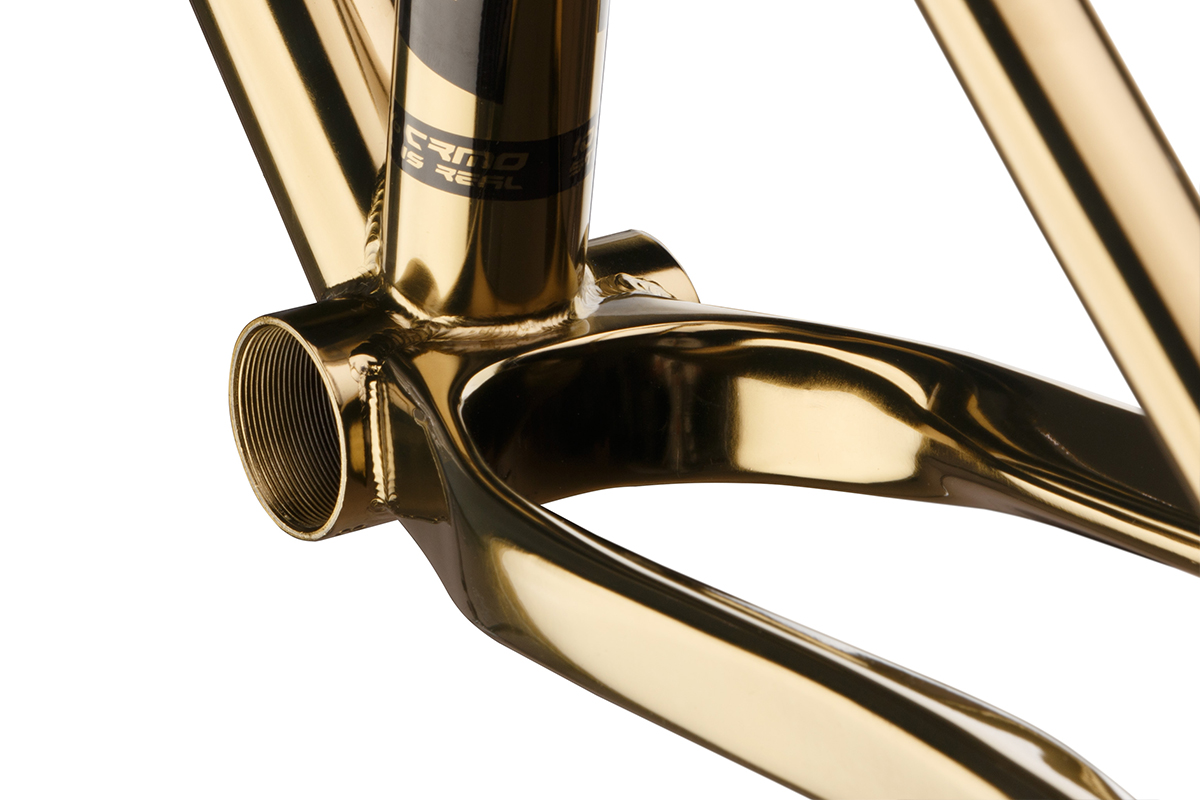

Hydroformed chainstay

Machined 6mm dropouts


ISO TESTS

Pedaling fatigue test

Horizontal fatigue test

Vertical fatigue test



SPECIFICATION

  • Material:Heat-treated, custom butted 4130 chromoly steel
  • Size:One size
  • Recommended fork travel:100-120mm
  • Headset: IS42/52
  • BB:Threaded 73mm BB
  • Hub size:135x10mm horizontal dropouts
  • Seat post:30.9mm
  • Seat Clamp: Integrated
  • Biggest chainring:32T
  • Max tire size:26x2.35”
  • Max rotor size:160mm
  • Gyro tabs:BMX standard

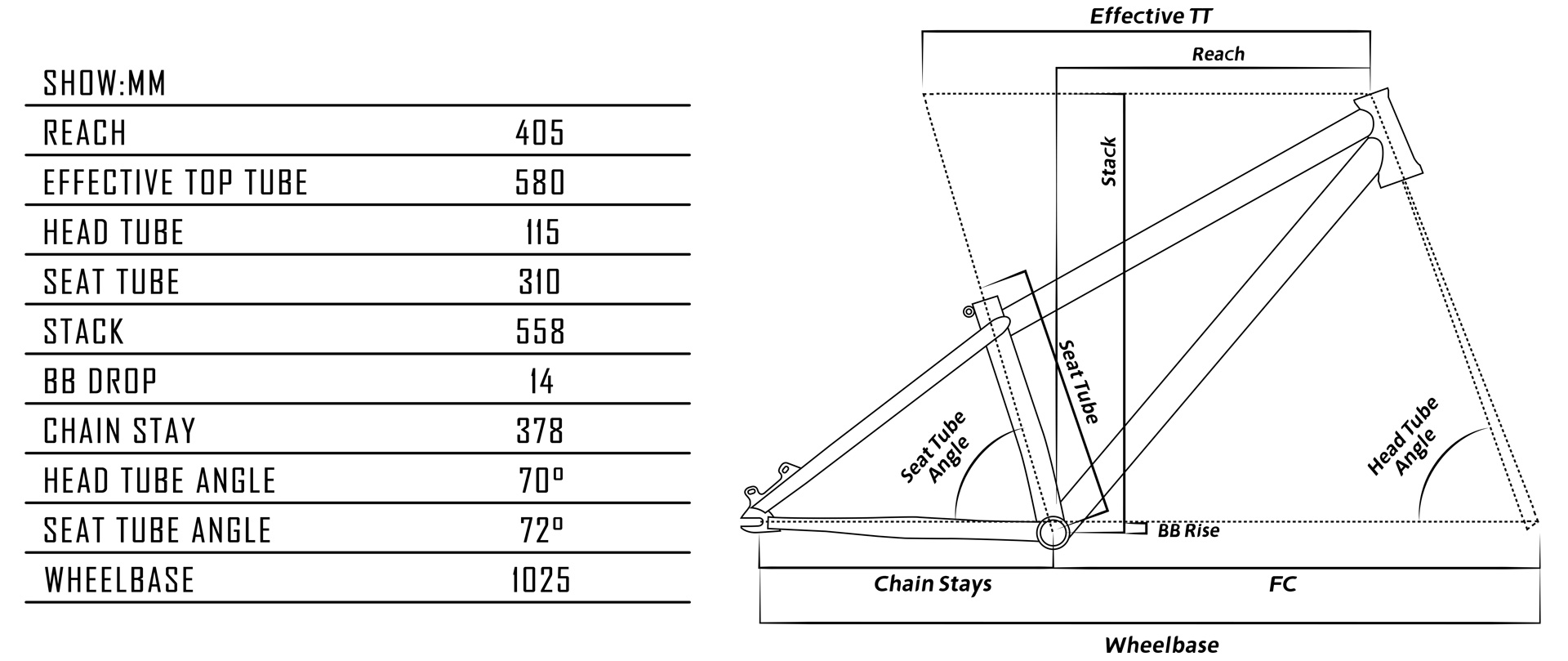

GEOMETRY
