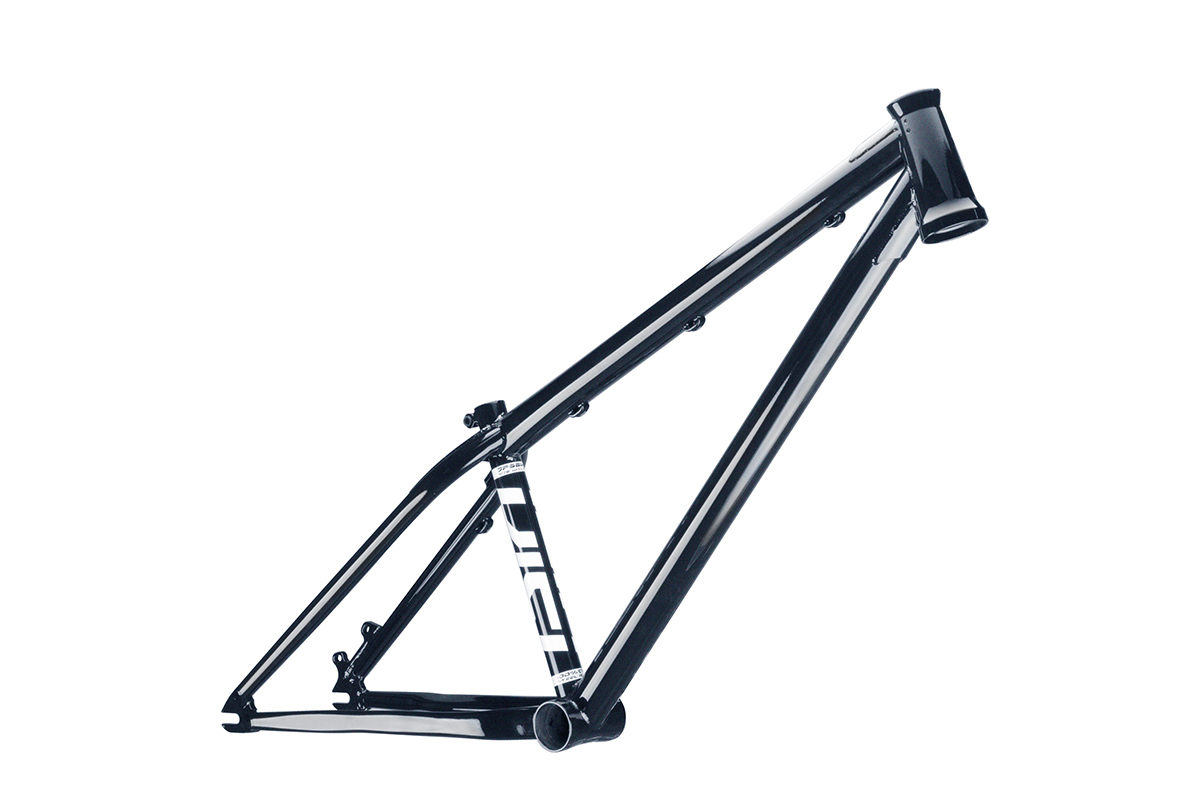

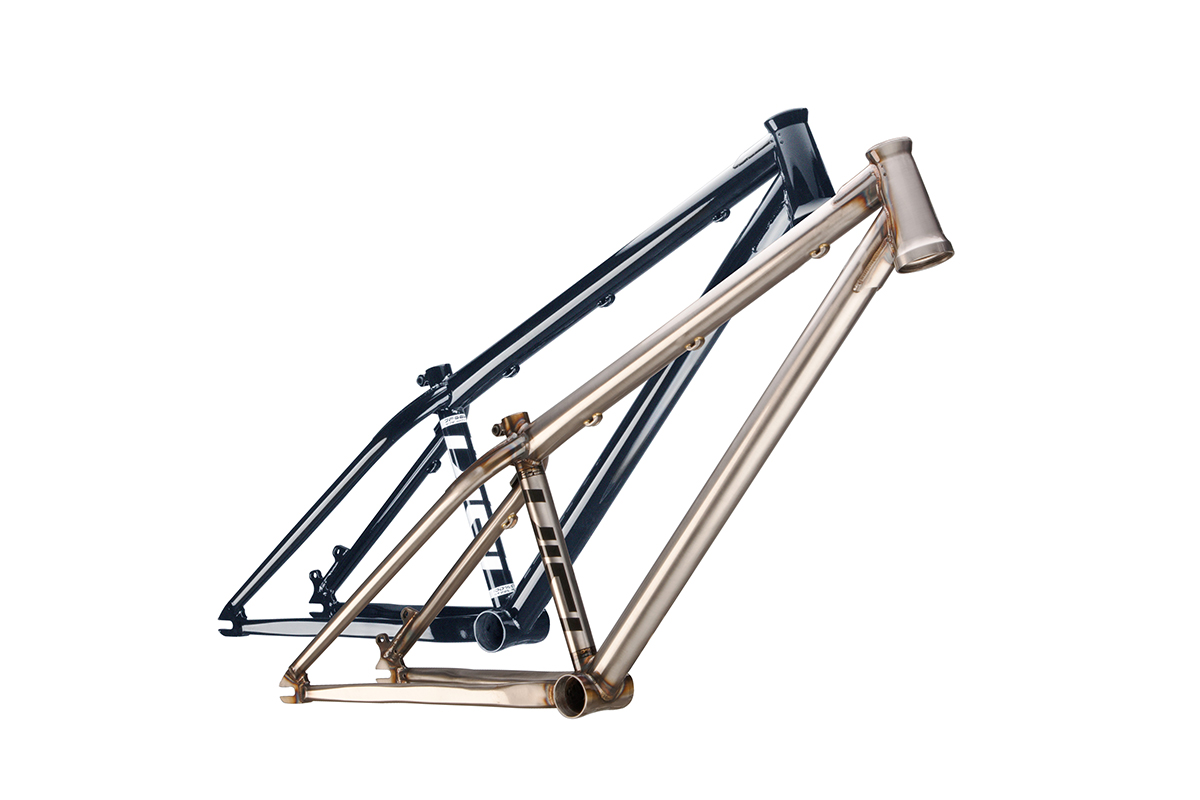

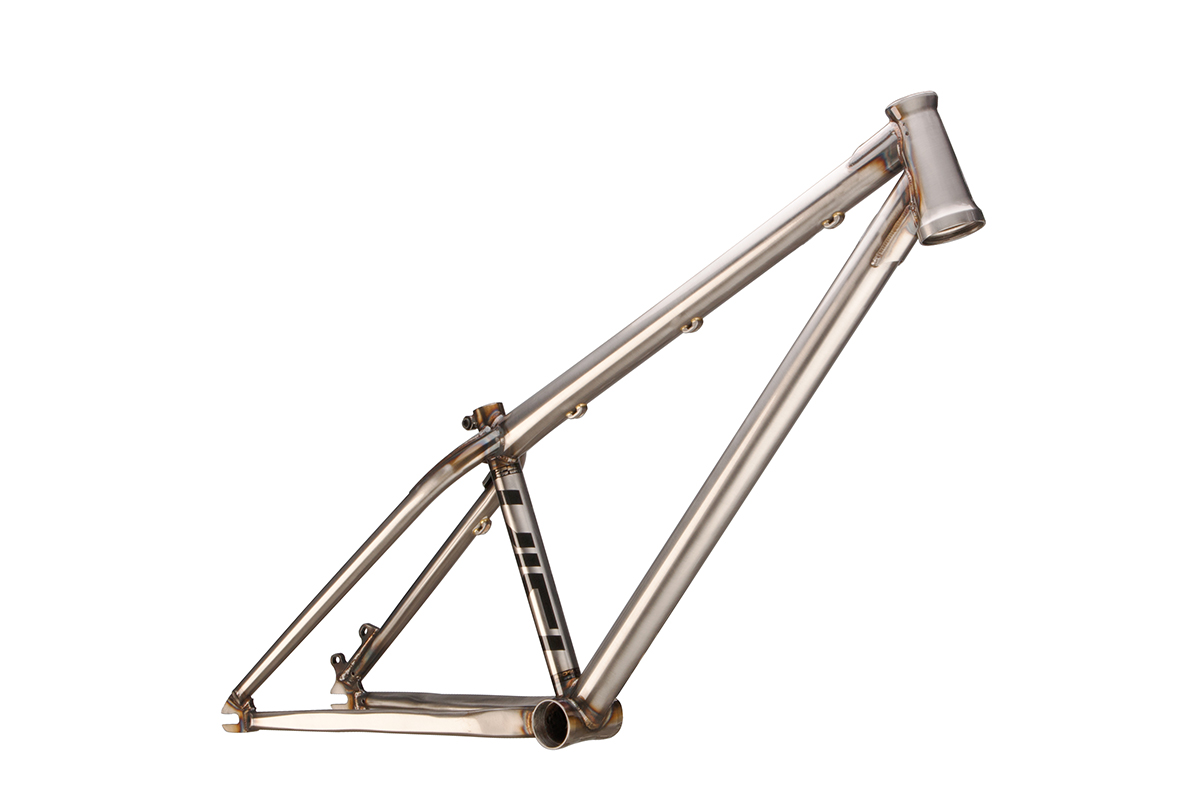

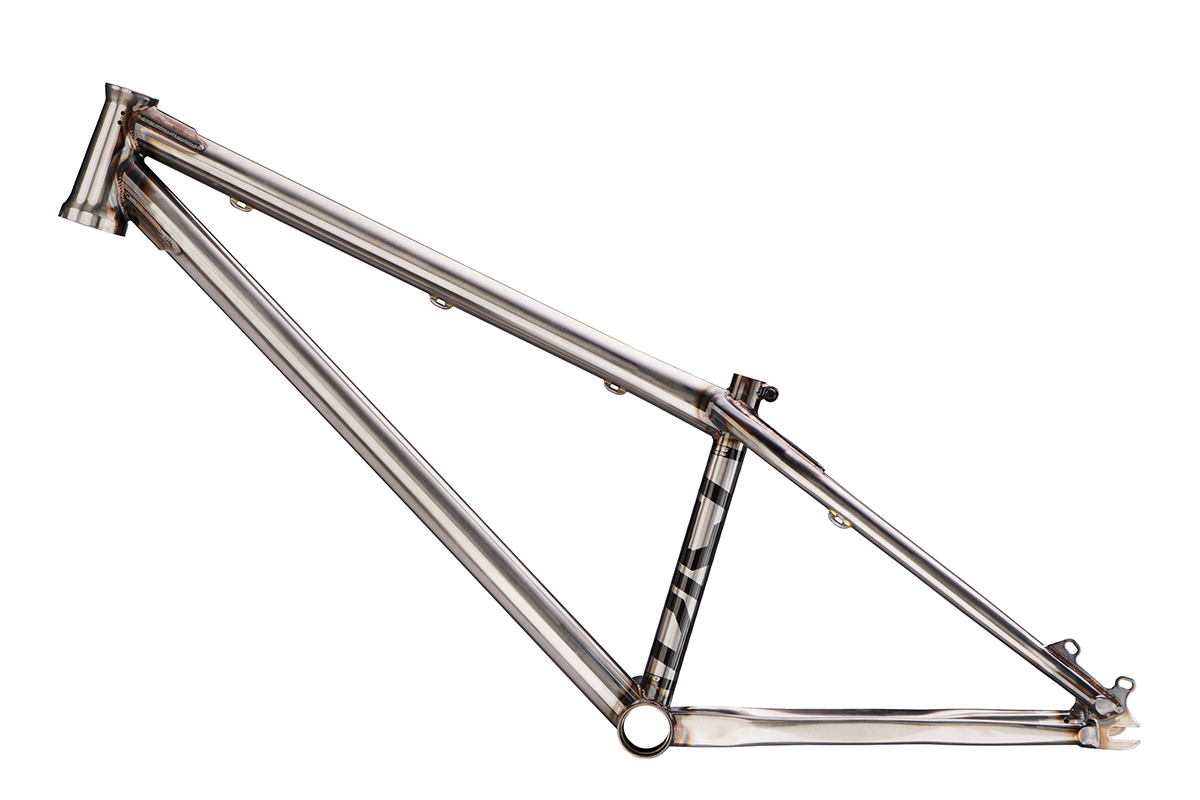

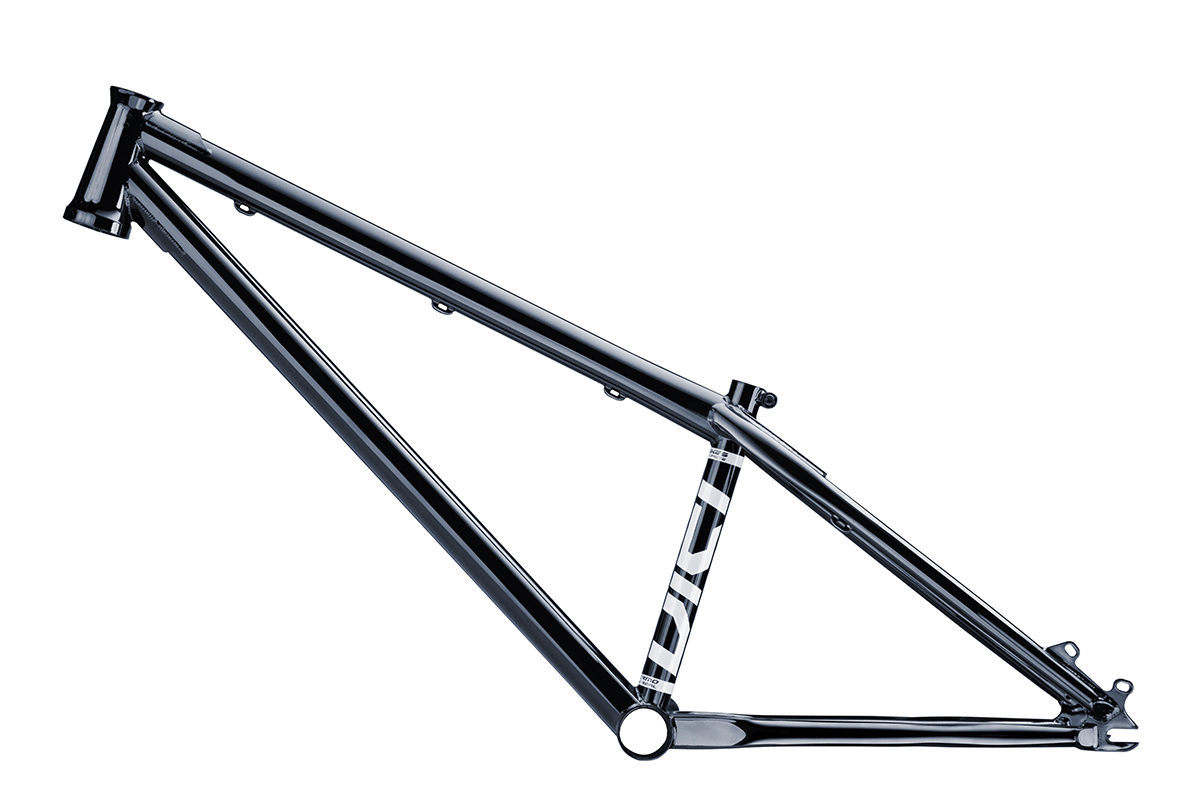

VICI V3

PRODUDT INFO

The VICI v3 is an irresistible bike frame, standing out with a decade of Cr-Mo frame design experience. It incorporates numerous high-end processes, such as Hi-end Cr-Mo 4130 steel tubes, multiple butted top and down tubes, heat treatment before welding, micro-smooth dropouts, hydroformed chain stays, and an hourglass-shaped bottom bracket. These features make the VICI v3 one of the strongest steel frames on the market.



Specifically designed for street and park riders, its compact and aggressive geometry, BMX-like BB and seat post specifications deliver a flexible riding experience and quick action feedback.


Build Quality

Hand Made in Taiwan

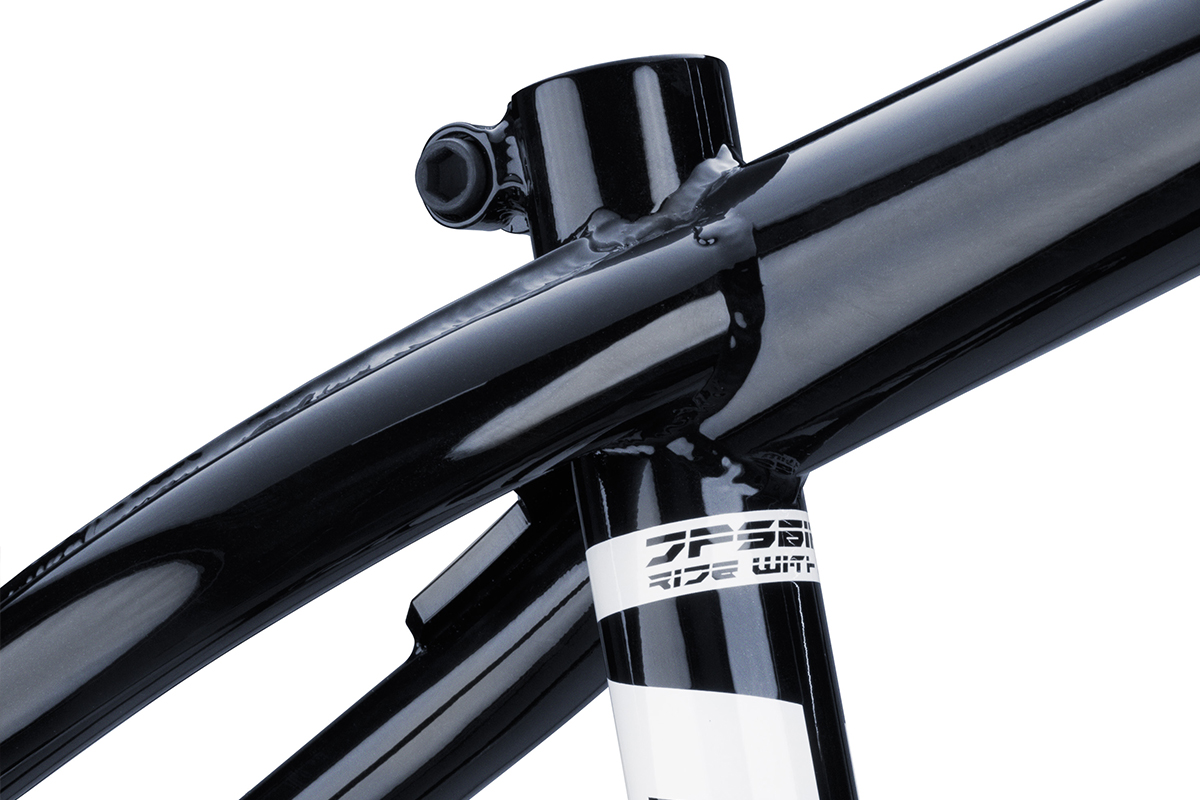

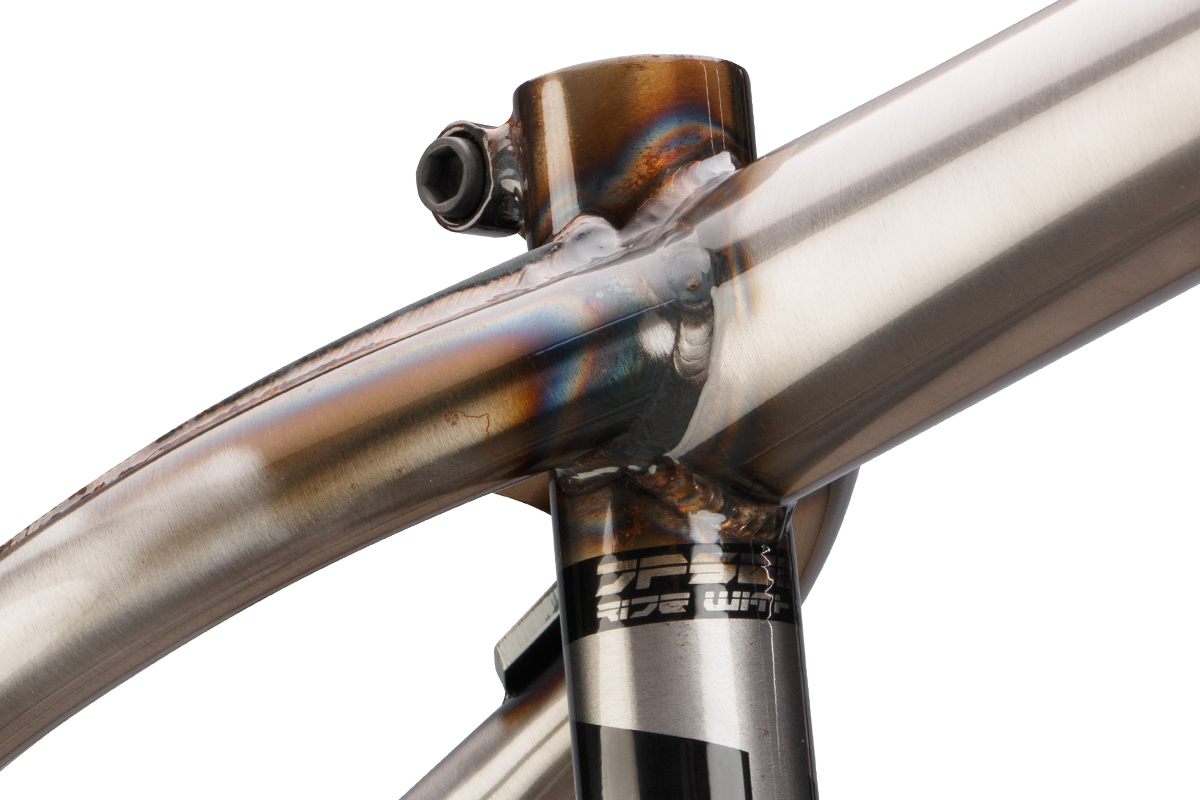

Triple Butted top tube & Double Butted down tube

Hydroformed chainstay

Machined 6mm dropouts


ISO TESTS

Pedaling fatigue test

Horizontal fatigue test

Vertical fatigue test


SPECIFICATION

  • Material:Heat-treated, custom butted 4130 cromoly steel
  • Size:One size
  • Recommended fork travel:80-100mm
  • Headset: IS42/52

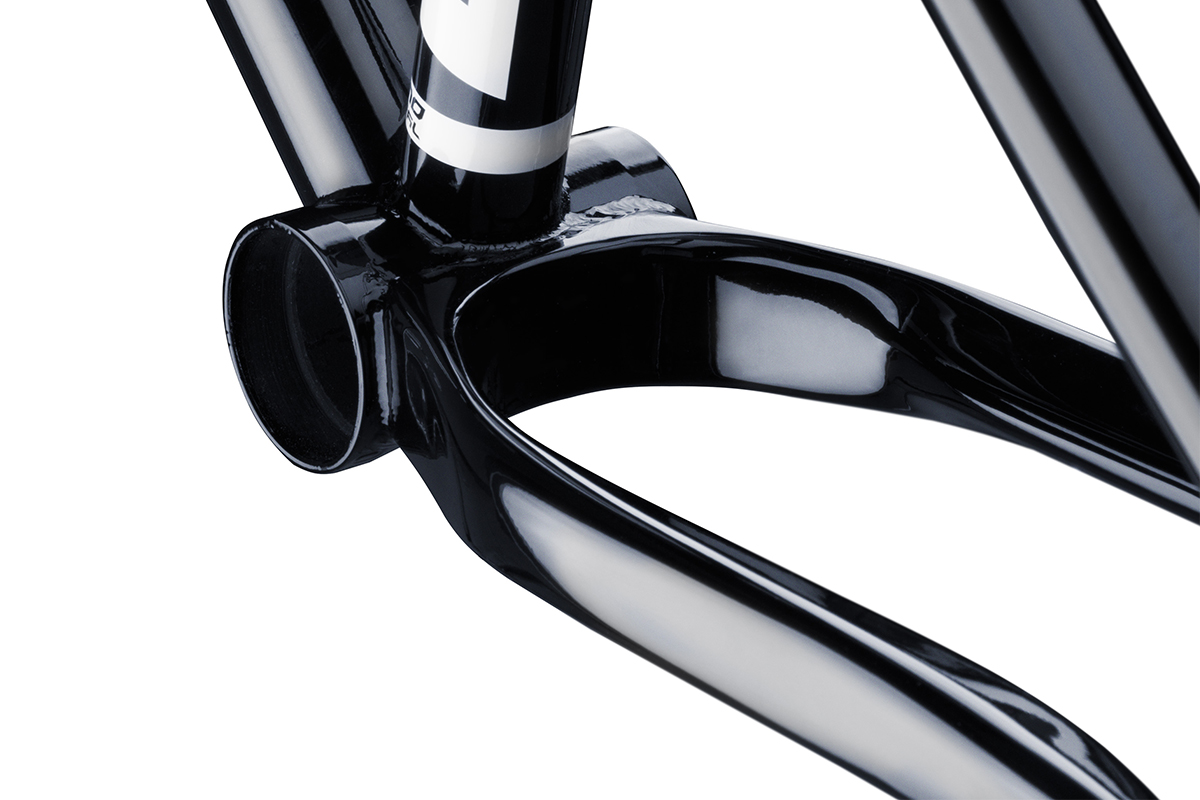

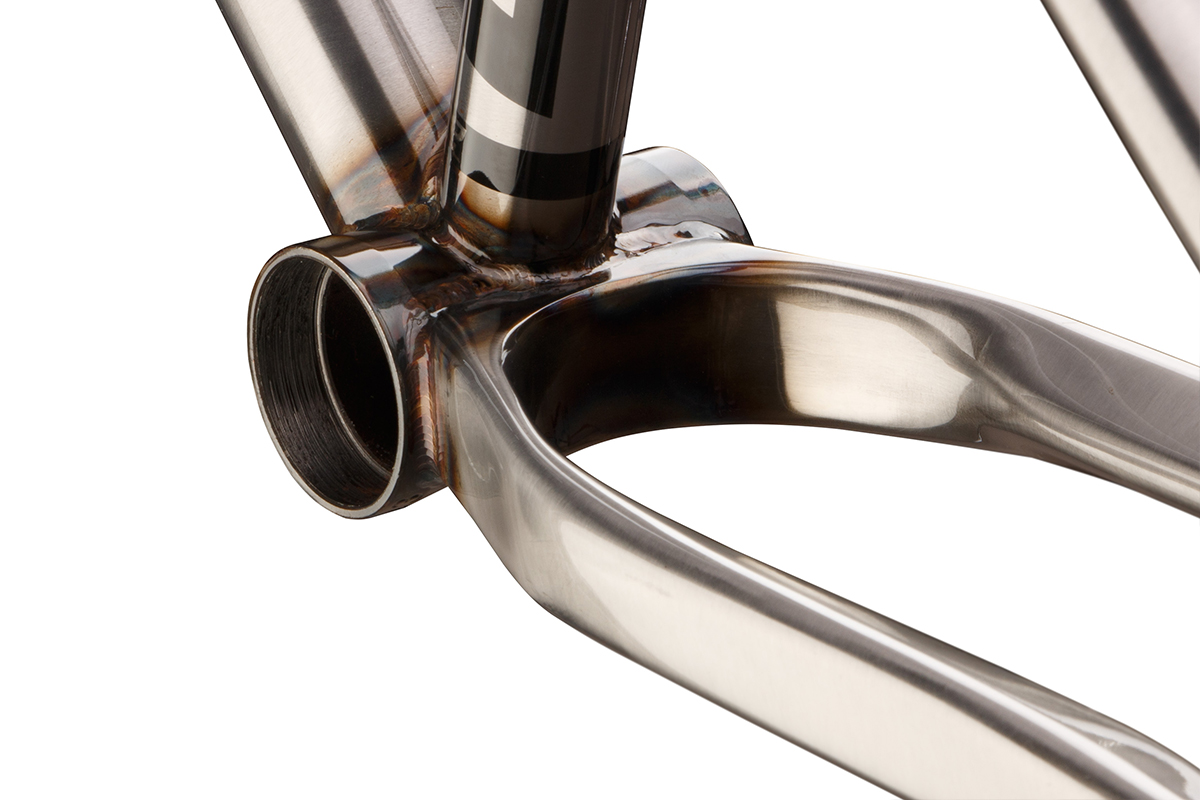

  • BB:MID BB
  • Hub size: 135x10mm horizontal dropouts
  • Seat post:25.4mm

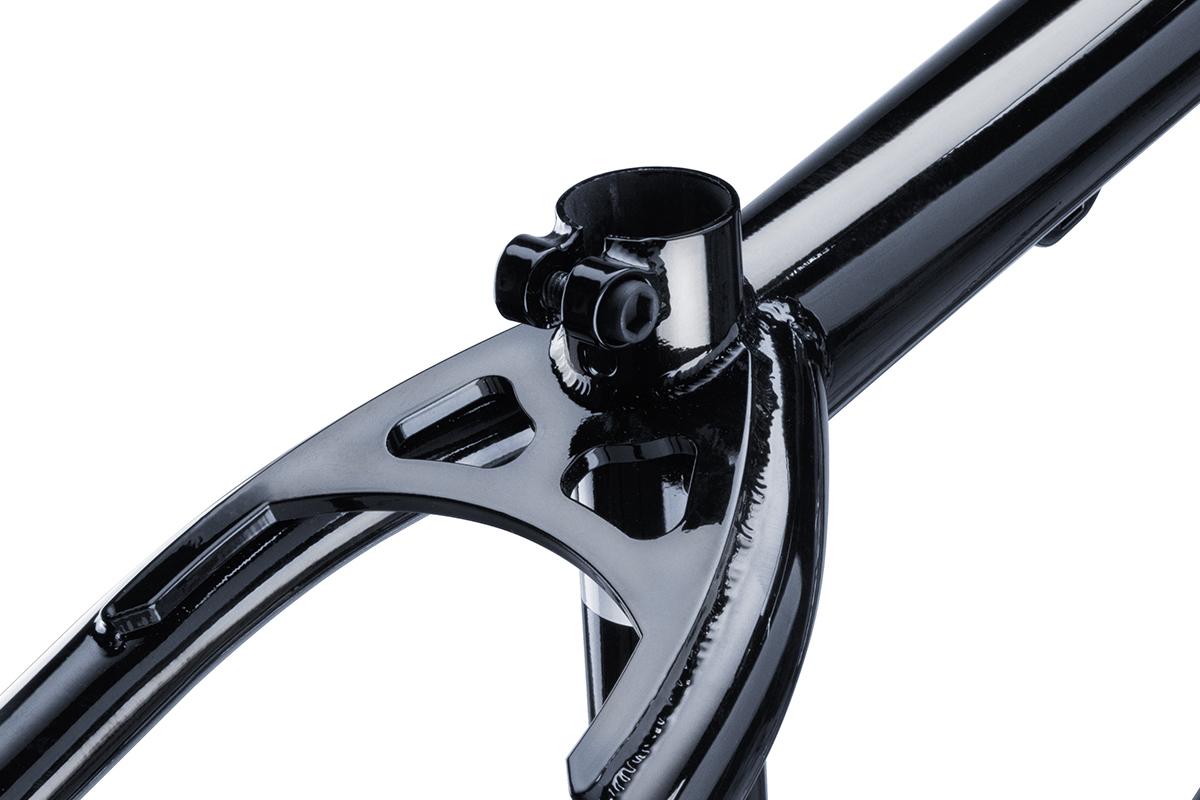

  • Seat Clamp:Integrated
  • Biggest chainring: 28T
  • Max tire size: 26x2.35”
  • Max rotor size:160mm
  • Gyro tabs:BMX standrad
  • Weight:2.6kG

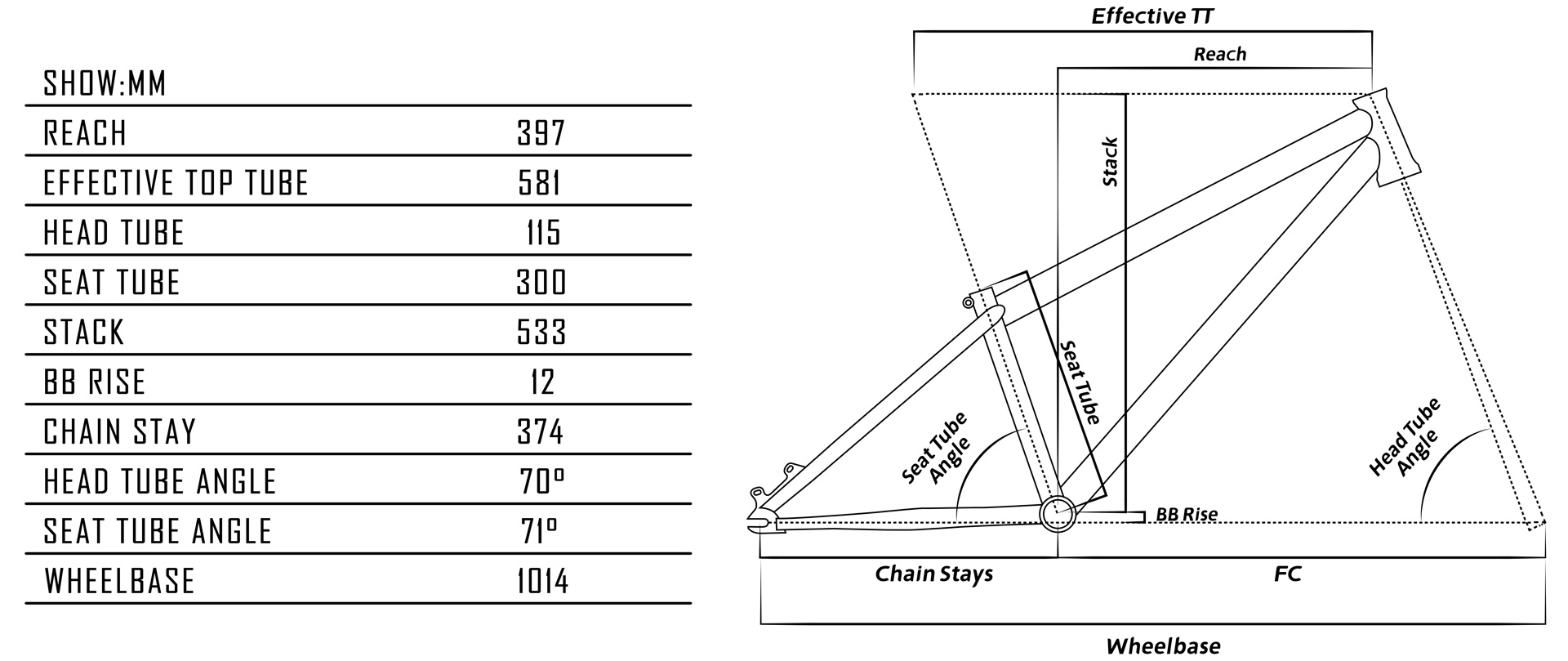

GEOMETRY
