VIDI AL

PRODUDT INFO

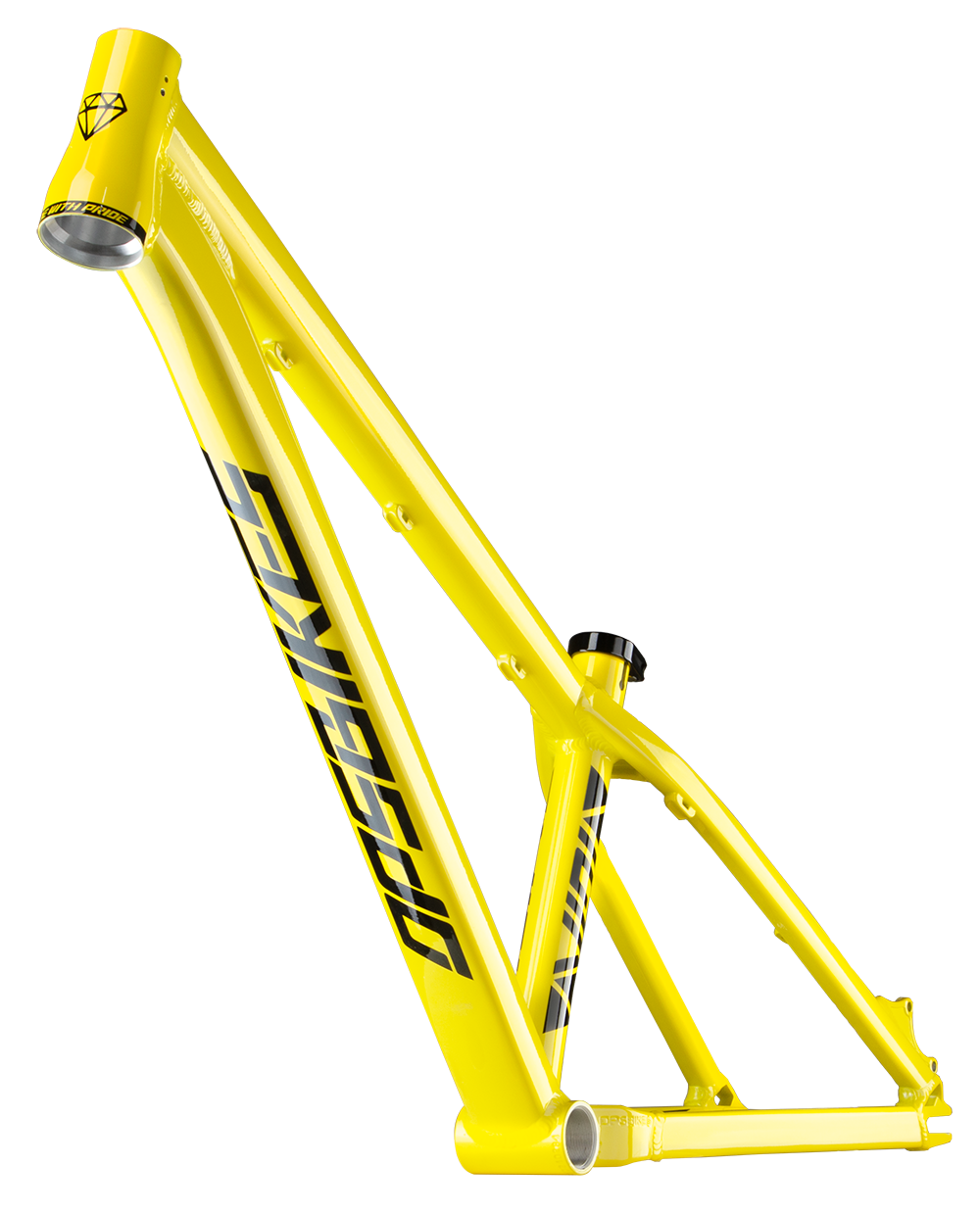

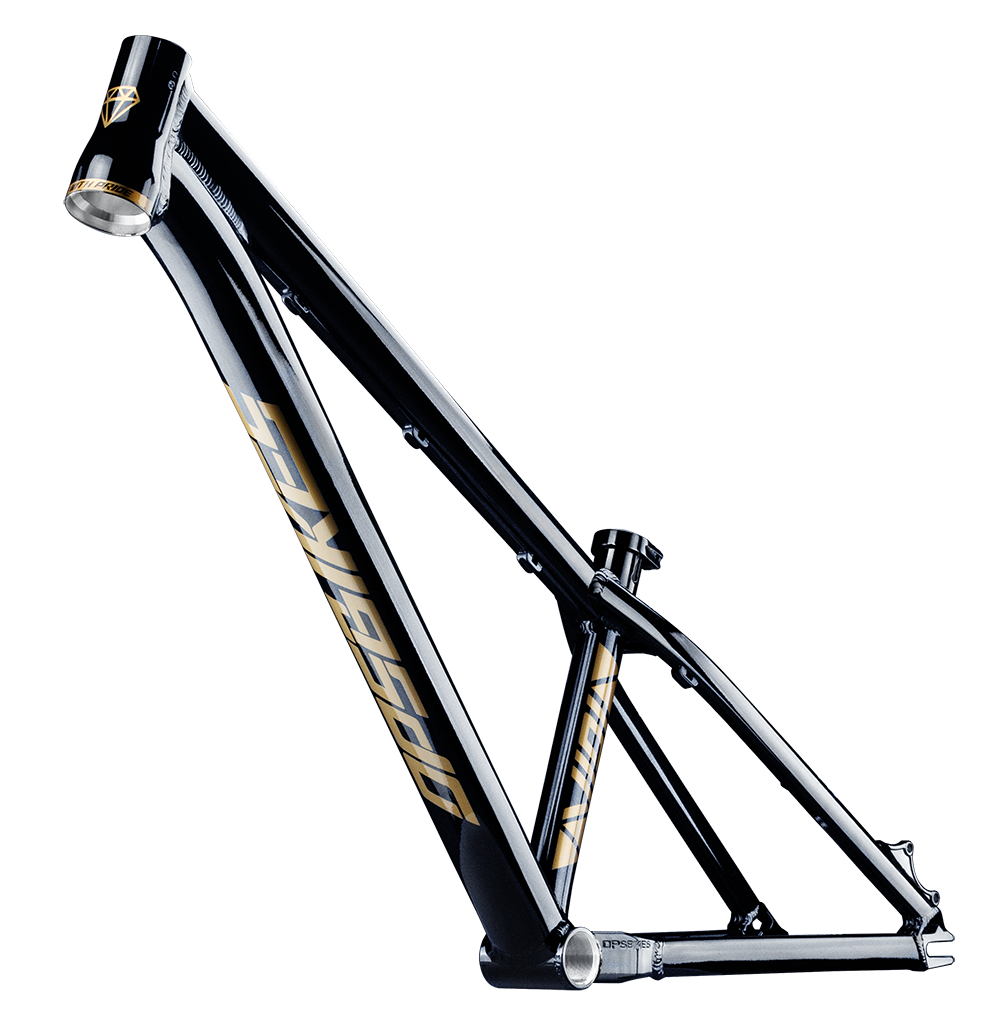

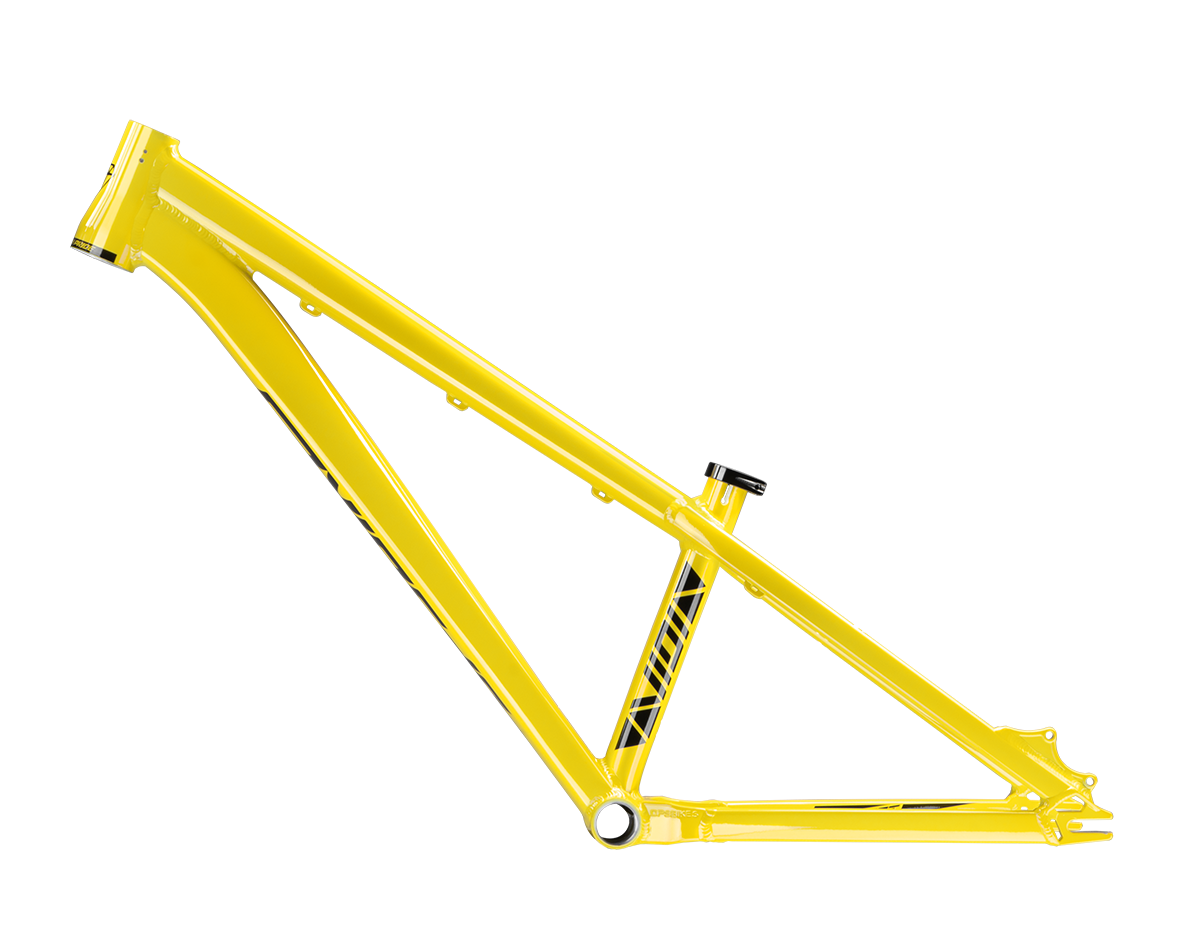

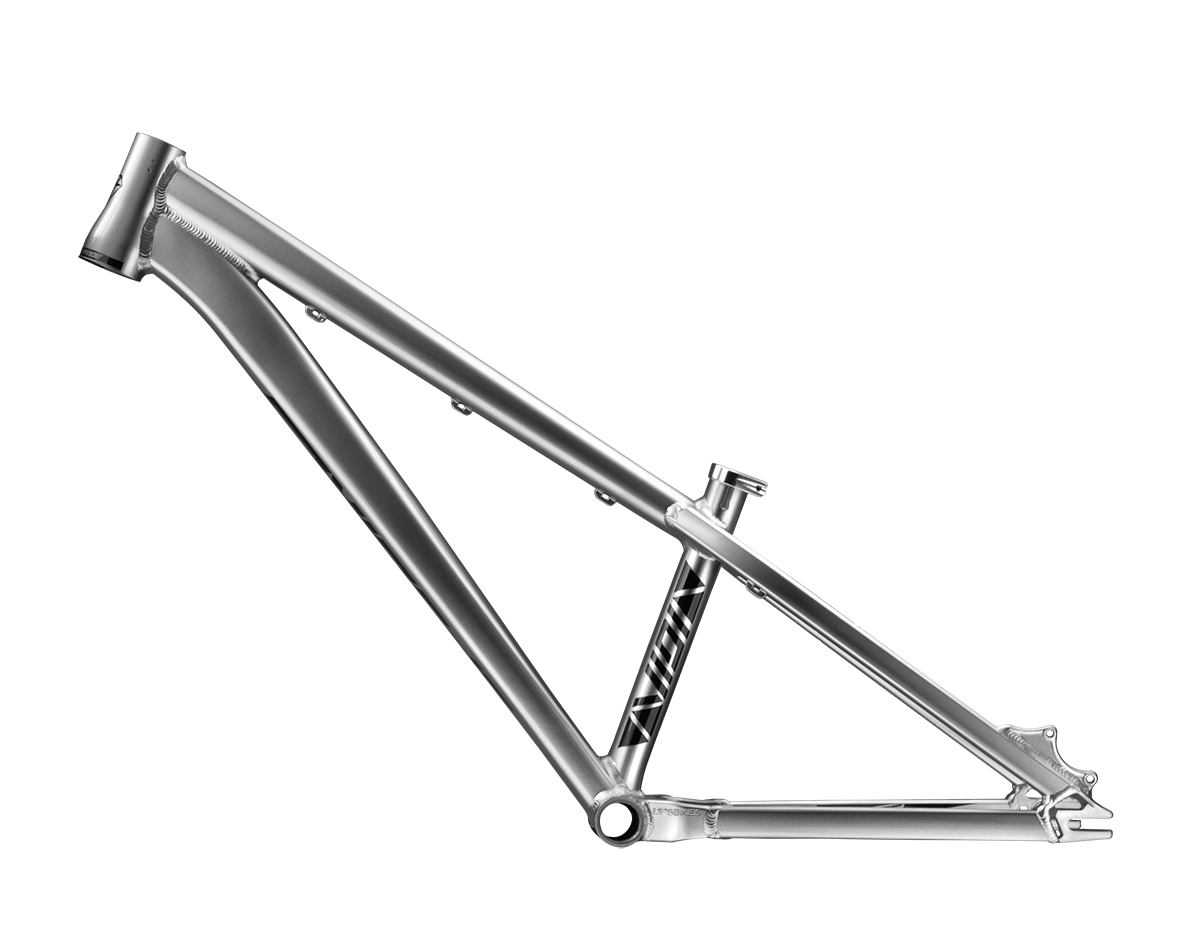

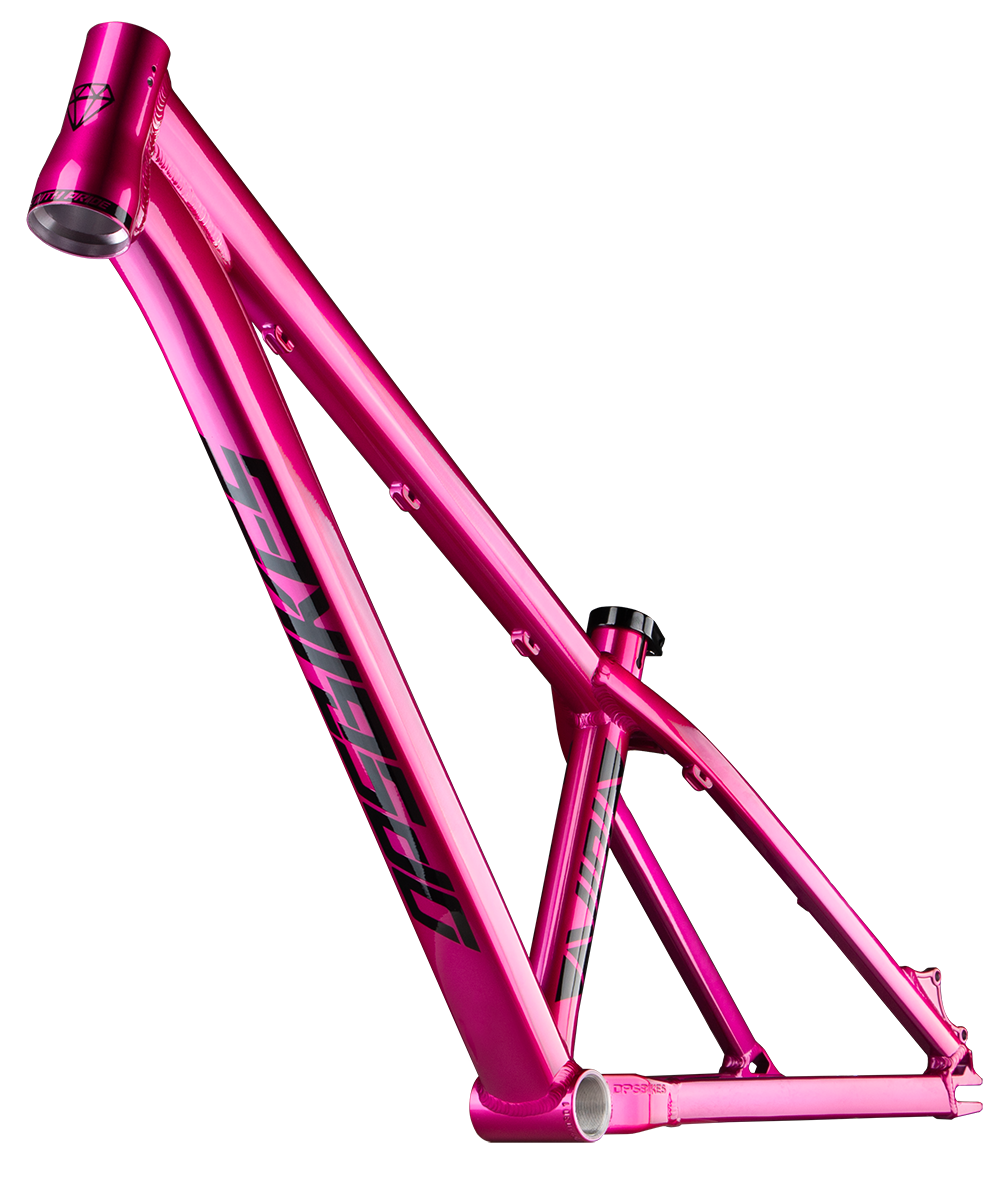

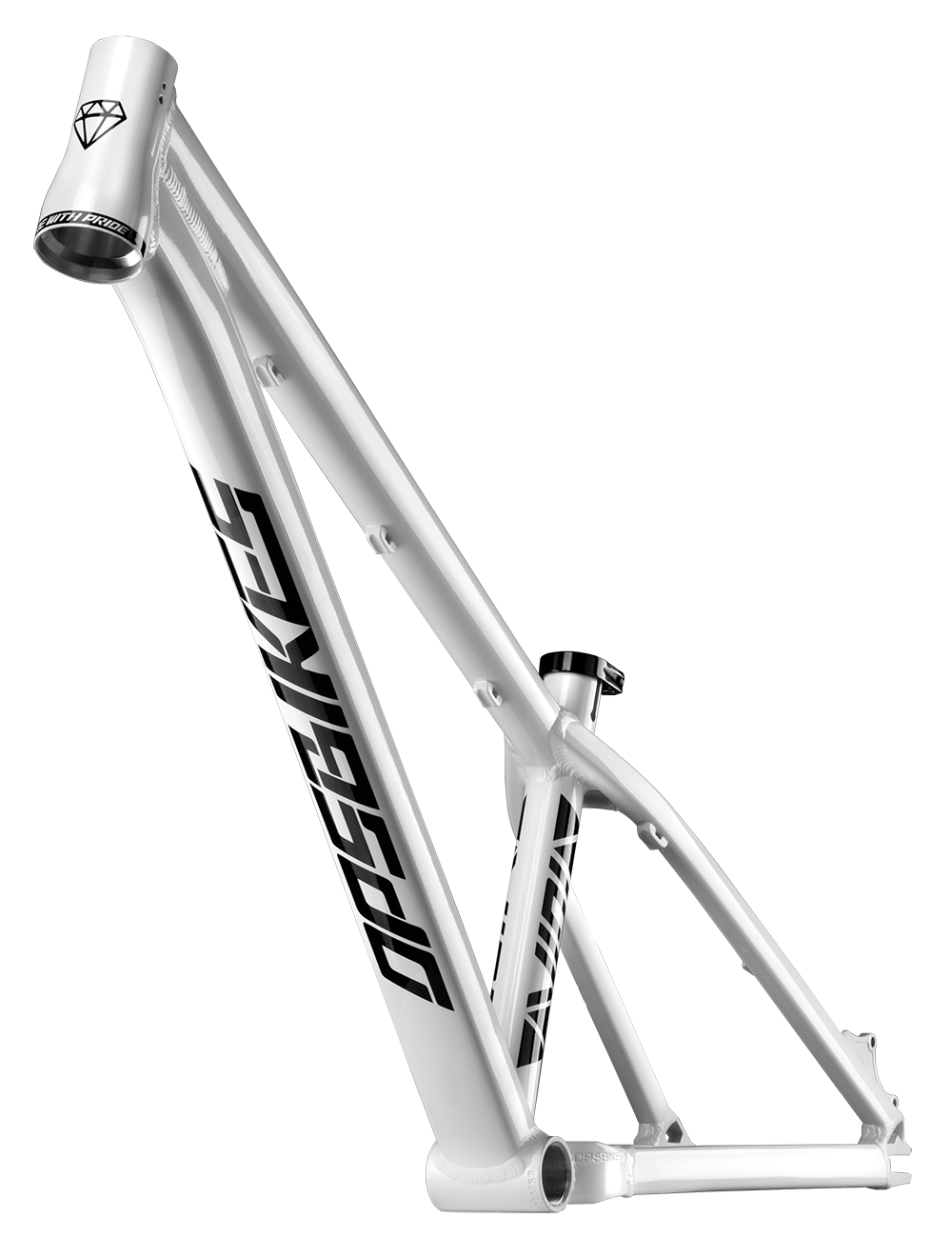

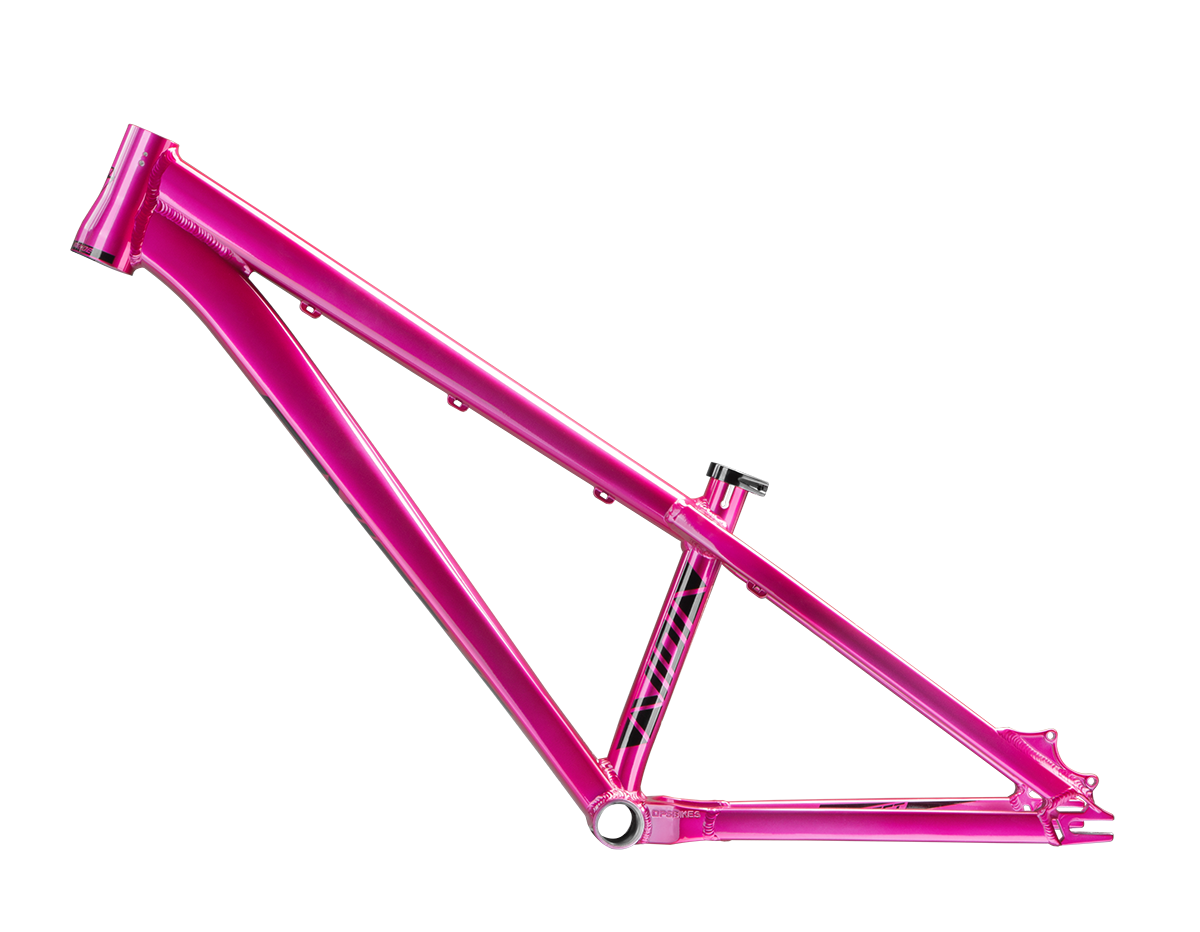

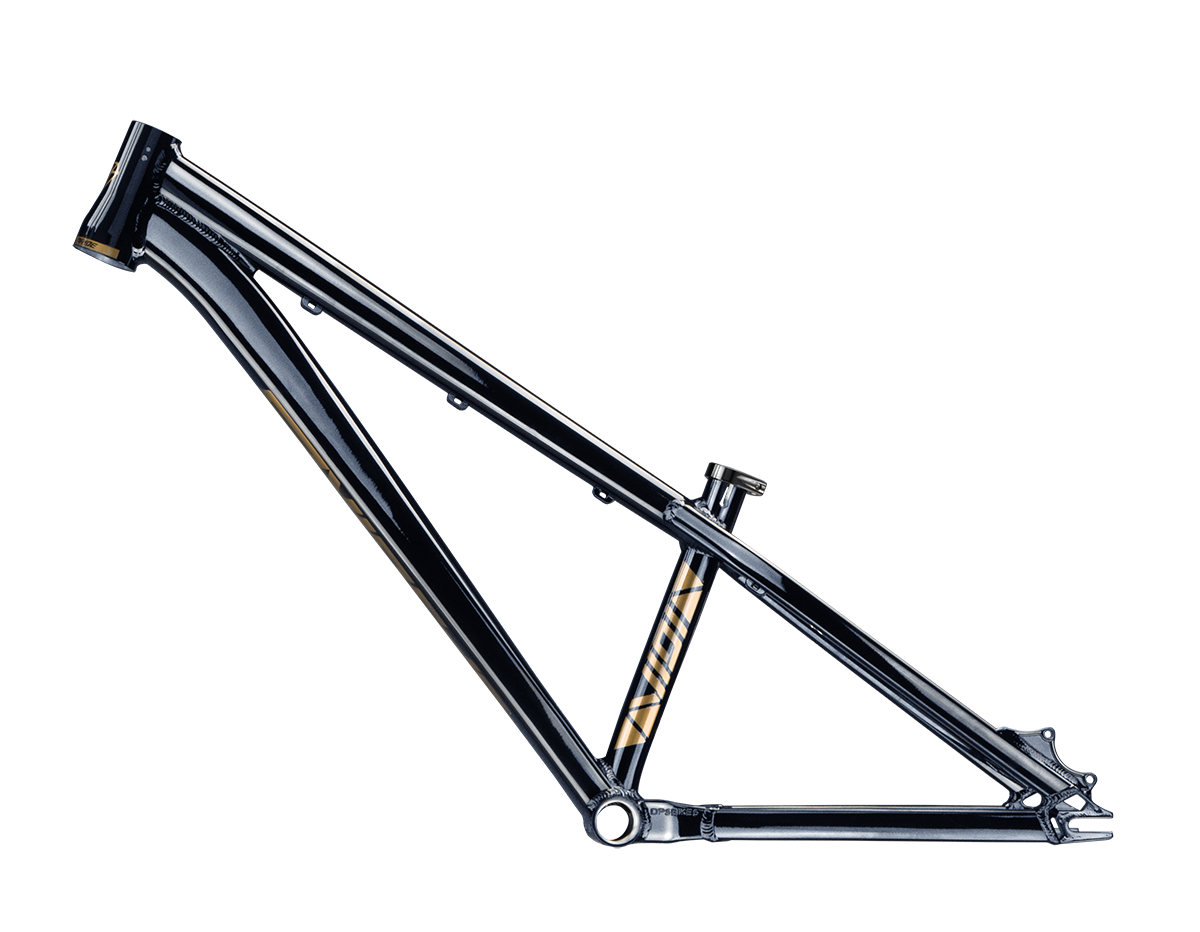

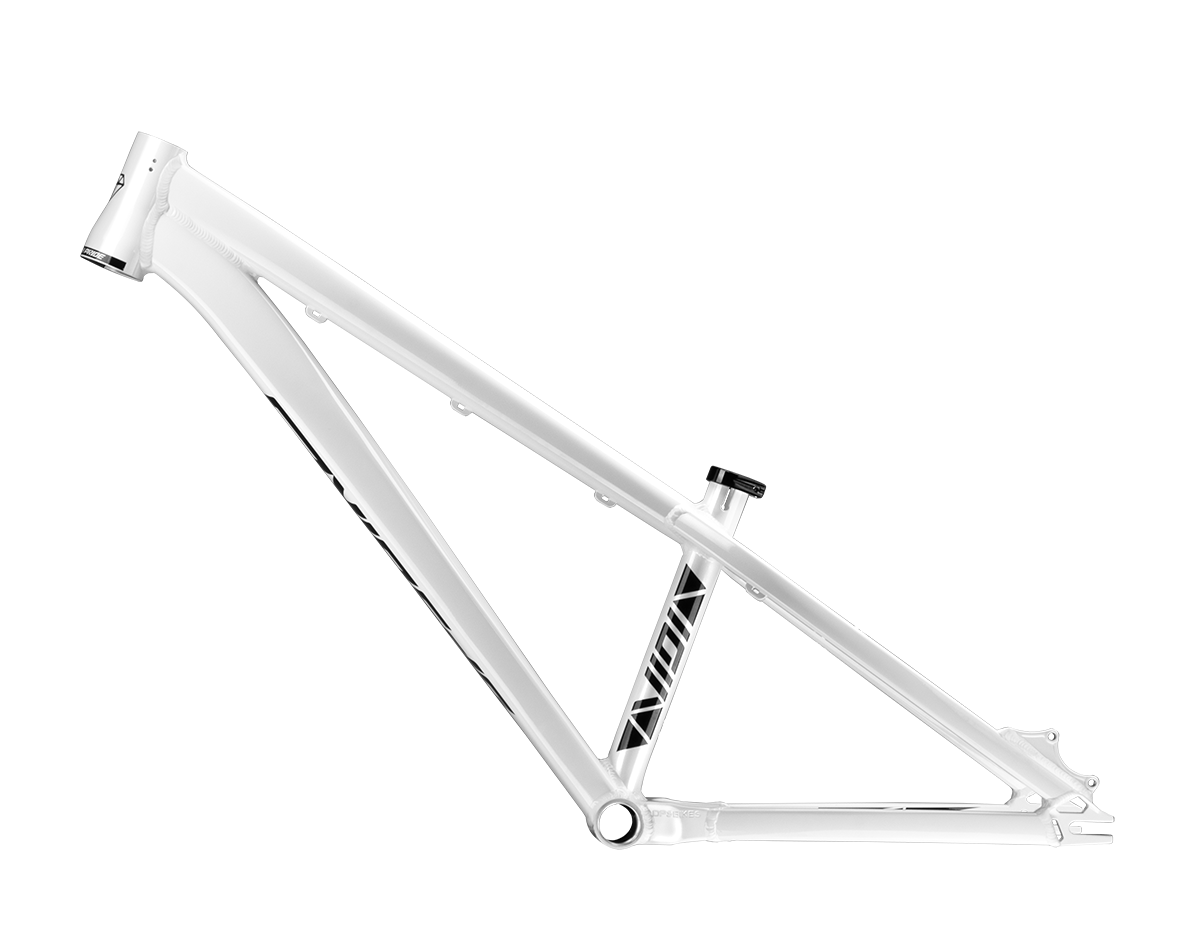

Lightweight, strong, and responsive, the VIDI II, like our steel frame products, incorporates numerous Hi-end processes including offset multiple butted of Top tube and down tube, custom seat stay bridge yoke. VIDI II encapsulates everything you need in a 'modern pro-level dirt jump frame'! For the second generation of the VIDI frame, we partnered with a professional dirt jump frame manufacturer in Taiwan. It has passed five stringent ISO tests, enduring 200,000 cycles and more. VIDI II survived!

The VIDI II is a frame designed for dirt jump and pump track riders. Its lower bottom bracket drop provides more stability, while the relatively shorter front end (REACH) and chainstays allow riders to perform a variety of daring maneuvers with ease.


Build Quality

Hand Made in China proundly

Triple Butted down tube

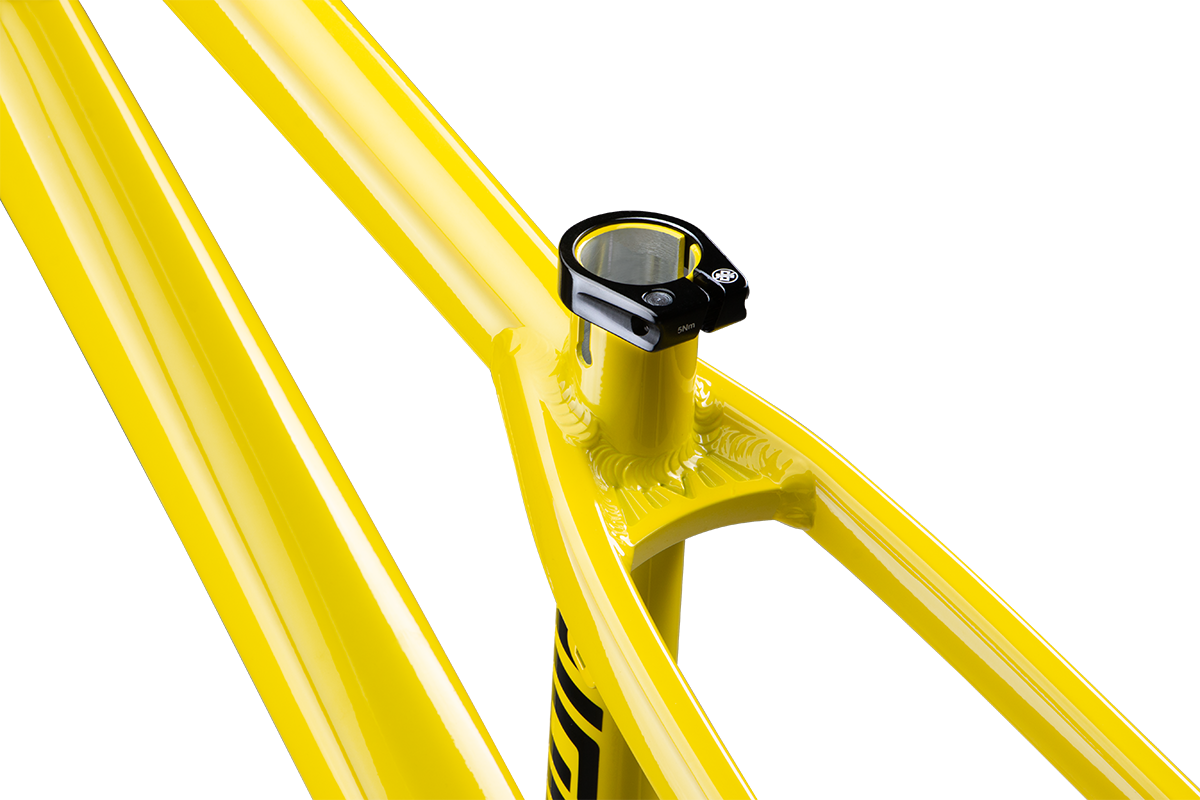

Custom forged seat stay bridge & Yoke

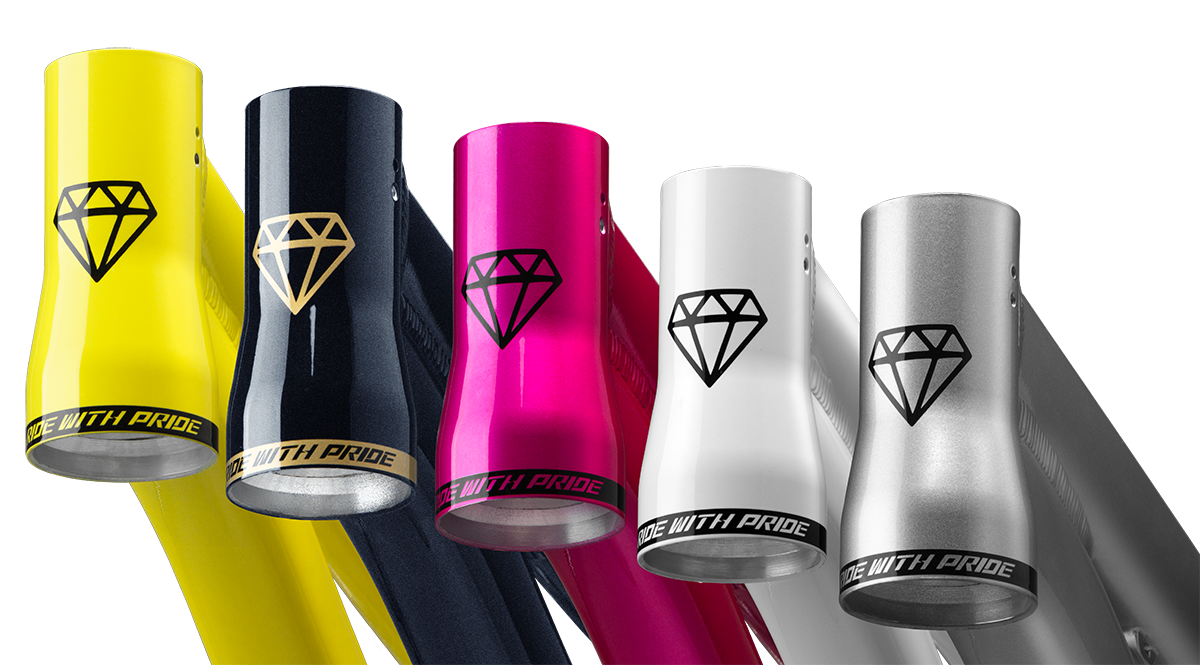

Machined head tube


ISO TESTS

Impact test (Falling mass)

Impact test (Falling frame)

Pedaling fatigue test

Horizontal fatigue test

Vertical fatigue test



SPECIFICATION

  • Material:AL6061 custom formed and butted tubes, custom forged seat stay bridge, custom forged yoke
  • Size:One size
  • Recommended fork travel:100-120mm
  • Headset:IS42/52

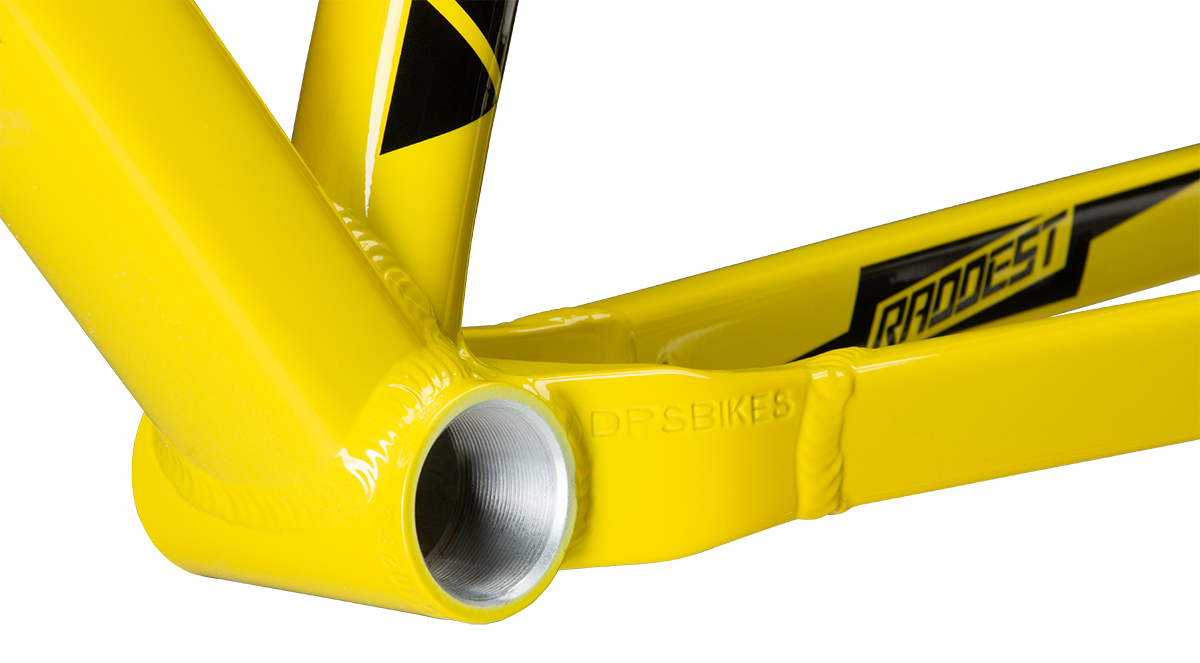

  • BB:Threaded 73mm BB
  • Hub size:135x10mm horizontal dropouts
  • Seat post:30.9mm
  • Seat Clamp:34.9mm come with frame
  • Biggest chainring:32T
  • Max tire size:26x2.35”
  • Max rotor size:160mm
  • Gyro tabs:BMX standard
  • Weight:2.18Kg

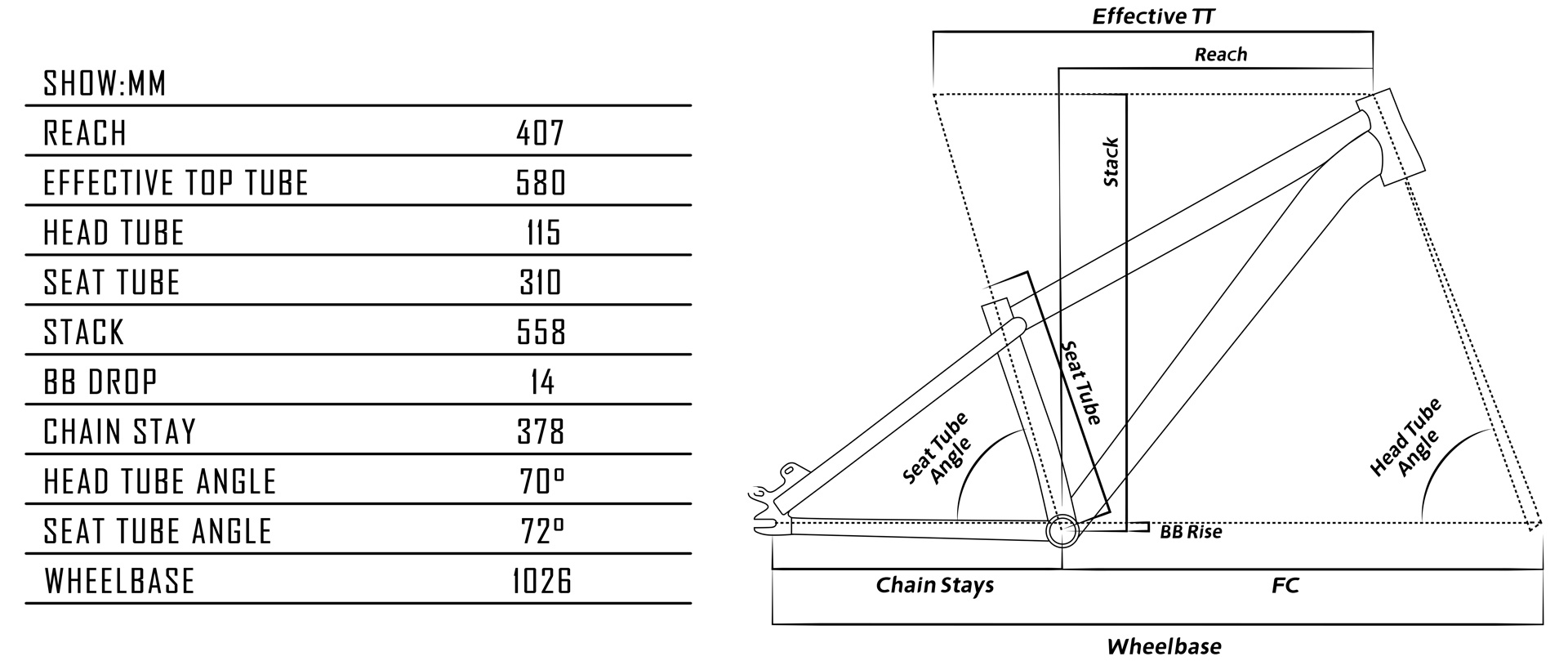

GEOMETRY
